This Series Printing machines print big size and small size tiles with two printing mode, single chain and double chain, which are available to the flat printing of big size and small size tiles for single fired and double fired. With the advantages of high speed, low cost, easy operation and easy maintenance, the machine is one of the best choices of the machine required high output in one production line.

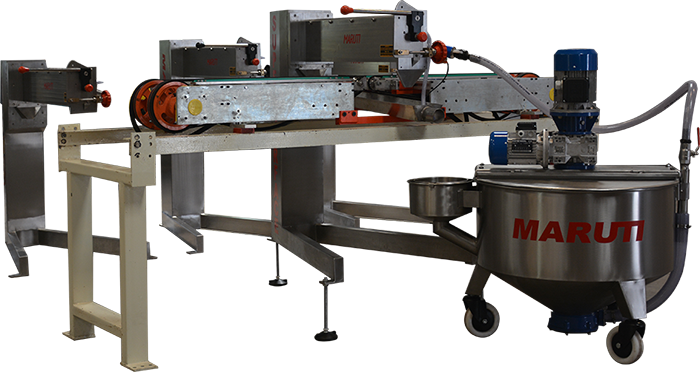

Waterfall system feeded by double motorized stirring mixer for the application of glazes, engobes and transparent frits. Its specific cantilever structure makes possible to easily control, manage and install it on any production lines.
Third firing printing machine
| Third firing printing machine | |
|---|---|
| Tile green size(mm) | 70 x 200~450 x 450 |
| Printing speed(m/min) | 20~40 |
| Max screen size(mm) | 650 x 900 |
| Installed power(kw) | 1.5 |
| Air consumption(L/min) | 1 |
| Working pressure(bar) | 5~8 |
| Length(mm) | 1730 |
| Width(mm) | 1050 |
| Height(mm) | 1450 |
| Weight(kg) | 300 |
| Third firing printing machine | |
|---|---|
| Tile green size(mm) | 70 x 200~600 x 600 |
| Printing speed(m/min) | 20~38 |
| Max screen size(mm) | 1050 x 1350 |
| Installed power(kw) | 1.5 |
| Air consumption(L/min) | 1 |
| Working pressure(bar) | 5~8 |
| Length(mm) | 2200 |
| Width(mm) | 1200 |
| Height(mm) | 1500 |
| Weight(kg) | 350 |
